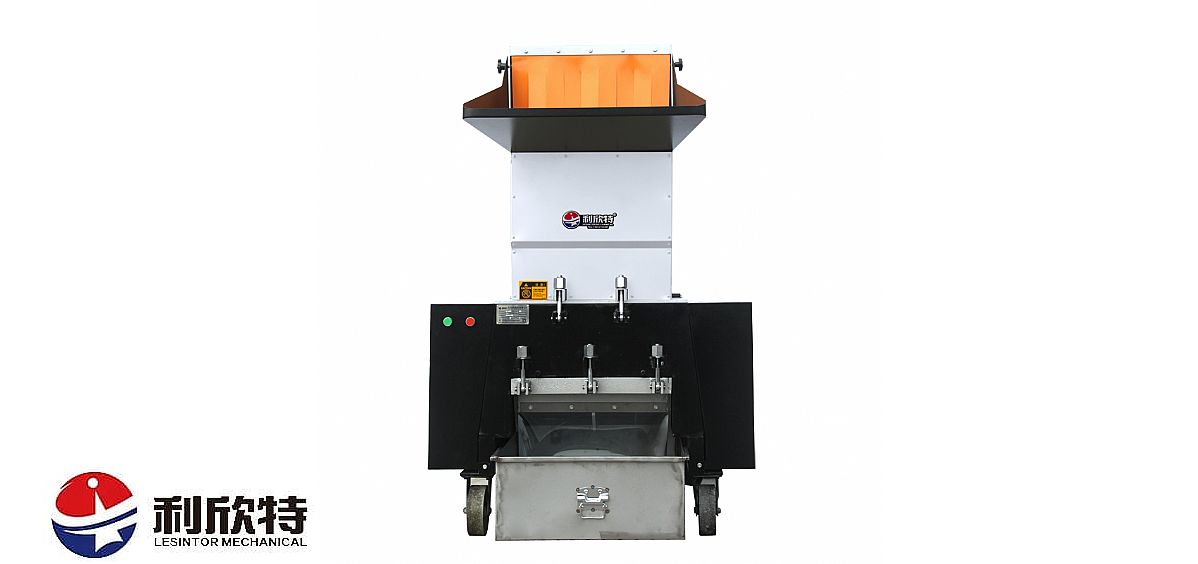

The Lesintor plastic shredder has a wide range of applications and can crush plastic products of various materials and shapes. It has a reasonable structure, easy operation, durability, efficiency, and economics. The plastic shredder is equipped with casters for easy movement. It can also be equipped with shock-absorbing feet to ensure smooth operation and reduce noise. The plastic shredder has motor overload protection, which prevents overload. Plastic waste shredded by our powerful shredder can turn into tiny flakes that can be recycled. Depending on the required flake size and machine model, our plastic shredder can shred up to 1000 kg of plastic each hour.
Price Range
Payment Options: Available on Request Delivery Time: Available on Request Shipping Zones: Worldwide
The plastic shredder has a safety device designed to protect the safety of machines and personnel. Alternate blade cutting effectively reduces dust and saves energy, and built-in soundproof baffles can prevent vibration and noise.
Detachable design, easy to maintain. We constantly strive to create the optimal user experience and working circumstances for those utilizing these machines. This shredder's design is incredibly sturdy and dependable. Everything has been measured and computed to withstand the extreme pressures of shredding plastic. Additionally, this shredder's design makes cleaning it simple. You only need to clean it in less than 30 minutes.
The straight upper box needs one more sound barrier layer; the middle is filled with sound insulation cotton. The machine has fine rivet iron wheels, iron bead drawer wheels, thickened cabinets, and a plastic-sprayed surface.
The machine adds a thicker board for sound insulation, making the body heavier, less noisy, solid, and beautiful.
The intention behind designing these machines was to cater to entrepreneurs. Facilitating the conversion of a passion for plastic waste recycling into a company.
Thanks to this professional plastic shredder machinery, larger volumes of plastic can be processed and recycled, which results in greater revenue.
Plastic Shredder's Input & Output
This plastic shredder can process various shapes and sizes of plastics like PS, PP, and HDPE with a high maximum thickness dependent on the motor's power. The machine's blades are designed to handle even rigid and dense plastics without clogging. Output from the shredder consists of uniform, reduced-volume plastic particles with various adjustable sizes from small to medium. Proper blade maintenance and safety and noise reduction measures ensure efficient and safe operation in recycling plastic industrial settings.
Plastic Shredding Performance:
Product parameters:
Model
QL300
QL400
QL500
QL600
QL700
QL800
QL1000
Motor power
KW
5.5
7.5
11
15
22
30
37
HP
7
10
15
20
30
40
50
Spindle speed （r/min）
610
580
600
506
493
440
440
Spindle diameter （mm）
72
72
78
82
110
110
110
Tool number(pcs)
9
12
15
18
21
24
6
Fixed cutter number (pcs)
2
2
2
4
4
4
4
Work efficiency(kg/h)
150-200
250-400
300-500
500-600
600-700
700-800
900-1000
Feed port size(mm)
300*200
400*250
500*285
600*315
685*430
800*450
1000*500
Machine weight(kg)
300
430
550
800
1325
1800
2000
Mesh diameter（mm）
∅8
∅10
∅10
∅12
∅12
∅12
∅14
Outline size（m）
1.07*0.72*1.08
1.29*0.86*1.18
1.37*1.06*1.39
1.54*1.15*1.66
1.75*1.25*1.96
1.95*1.37*2.18
2.25*1.60*2.4
More details:

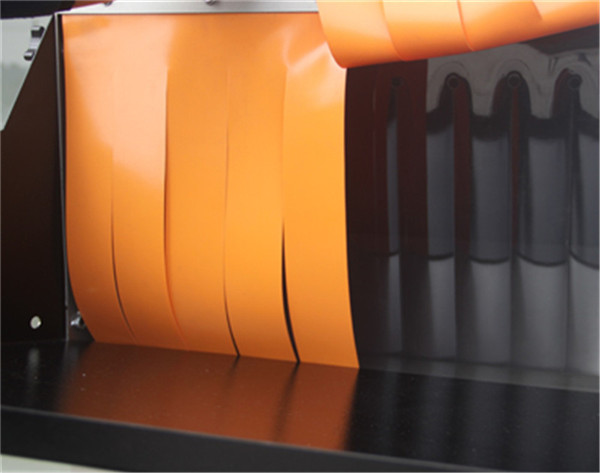

Enlarged feed port
Double-layer baffle, duckbill-shaped widened and enlarged feed inlet, blanking more quickly and punching more fiercely.

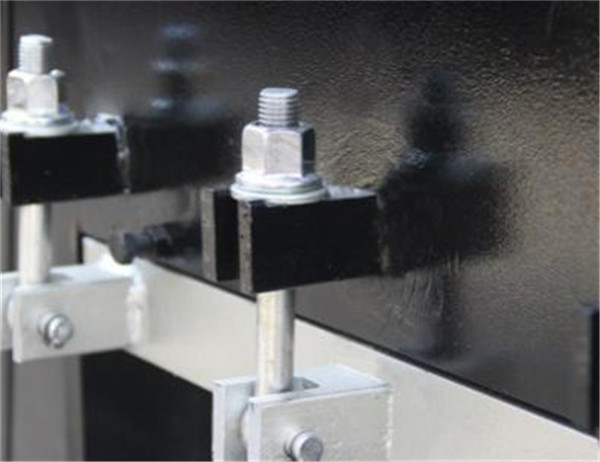

Hex nuts
Thick thread is simple and convenient.

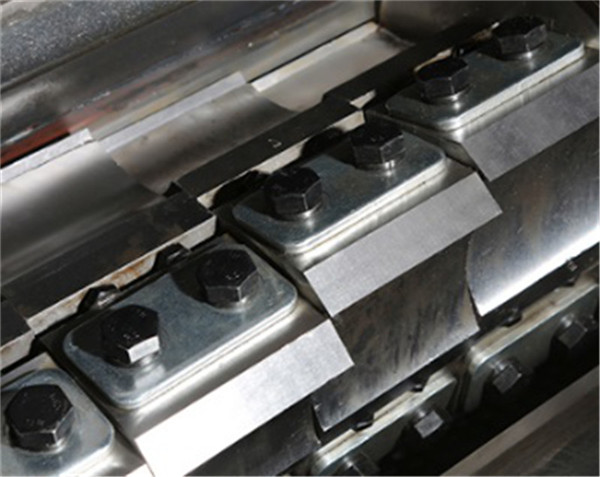

Alloy steel blade
In a refined tool steel step knife, the knife gap can be adjusted, removed, and repeatedly sharpened after it has become dull.

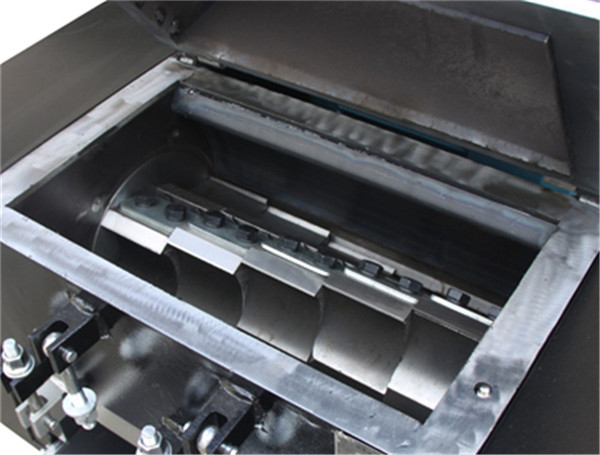

Blade chamber
The material is thick, effectively preventing vibration and noise, and has a high environmental protection effect.

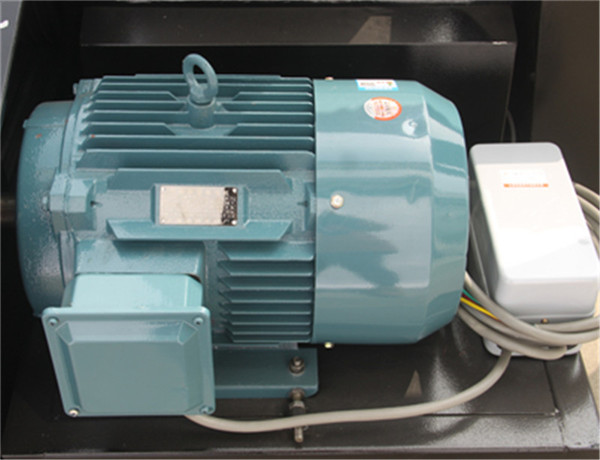

Brand Motor
Overload protection, to protect the safety of human and machine, stable performance, low failure rate, long life

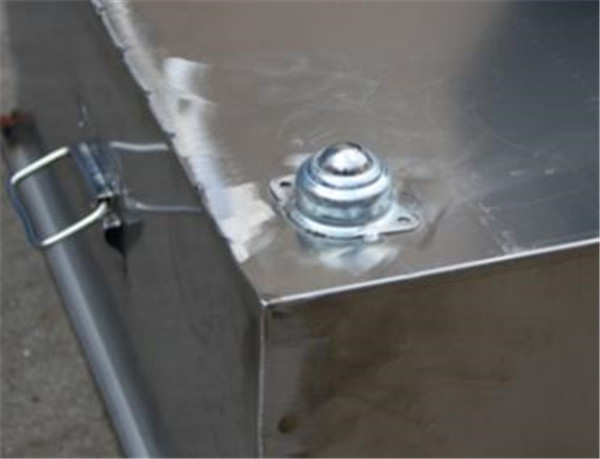

The bottom is designed as a ball
The ball design at the bottom of the receiving drawer makes it easier for customers to take materials.

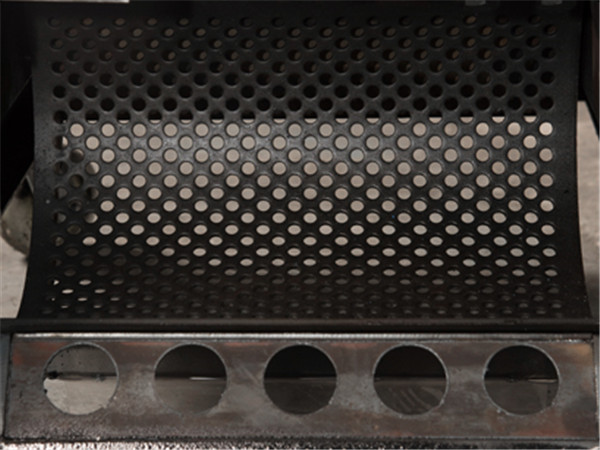

Customizable screen
The output size depends on the screen mesh size, and the selection is more flexible.
