Machine Characteristics:
• Low speed, low noise, low dust
• Adopt Taiwan Shengbang nameplate geared motor, low noise, high efficiency and stability, and long-lasting durability.
• The drive is driven by a direct-coupled motor, which is more stable and reliable than the traditional drive.

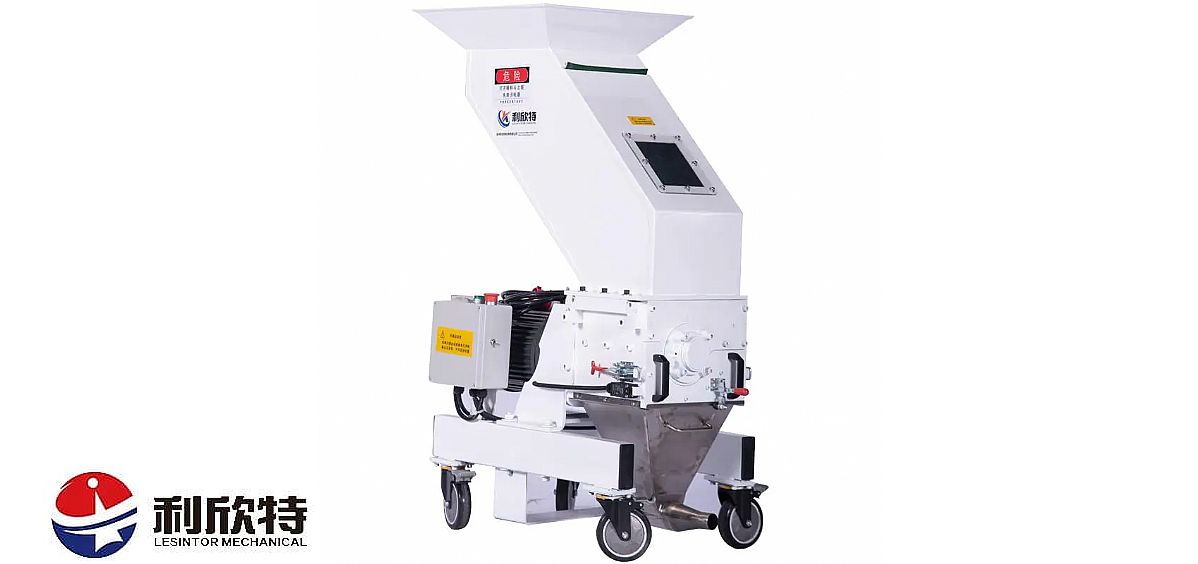

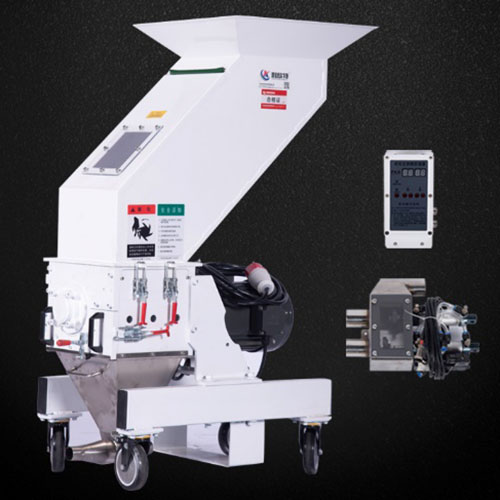

Product Image
Crushing Effect
Certificates
| GB/T19001-2016/ISO9001:2015 "Management System Certification Certificate" |
| GB/T 24001-2016/ISO14001:2015 "Management System Certification Certificate" |
| CCTV advertising ID number：1962573230050061 "CCTV Advertising Broadcasting Certificate." |
| "Quality·Service·Integrity AAA Enterprise" National Key Recommended Products in China's Plastics Industry" |
Specifications
| Model |
Medium speed 8-knife |
Medium speed 10 knife |
Medium speed 13 knife |
Medium speed 15 knife |
| Voltage |
Three-phase/380V 50HZ |
| Power（KW) |
2.2KW |
2.2KW |
3.7KW |
3.7KW |
| Motor brand |
Sheng Bang |
Jie pan |
| crushing chamber |
236*270mm |
270*290mm |
310*375mm |
265*430mm |
| Size of the feeding port |
310*270mm
470*520mm(Bell mouth) |
310*270mm
470*520mm(Bell mouth) |
440*310mm
470*520mm(Bell mouth) |
580*330mm |
| Moving knife |
8*3=24 |
10*3=30 |
13*3=39 |
15*3=45 |
| Tool material |
SKD-11 |
SKD-11 |
SKD-11 |
SKD-11 |
| speed |
about 143 Revolutions/minutes |
about 143 Revolutions/minutes |
about 143 Revolutions/minutes |
about 143 Revolutions/minutes |
| Screen mesh |
standard 6MM |
standard 6MM |
standard 6MM |
standard 6MM |
| Crushing ability |
20-60KG/H
（Screen according to six standards） |
30-100KG/H
（PP material as standard） |
40-120KG/H
（PP material as standard） |
50-150KG/H
（PP material as standard） |
| Outline size |
Length 750*width 470*height 1250mm |
Length 970*width 460*height 1240mm |
Length 1180*width 560*height 1460mm |
Length 1100*width 800*height 1350mm |
| Machine weight |
185KG |
192KG |
265KG |
233KG |
Partners:（in no particular order）
Product Details
A double-layer, sound-proof material box can reduce the noise generated during crushing.
- View window, Claw type tool
View Window
The crushing effect is clear at a glance.

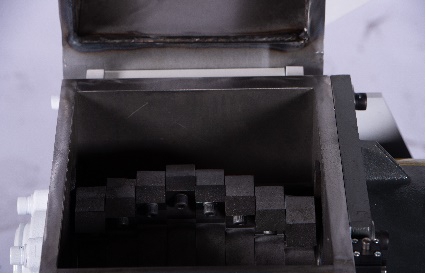

Claw type tool
Small resistance, not easy to jam, improves cutting efficiency.
Stable performance, long life, large transmission torque
The combined internal and external inlaid structure ensures sealing performance, and the model is easy to disassemble and clean.
Ensure safety and reliability, and ensure the safety of operators.

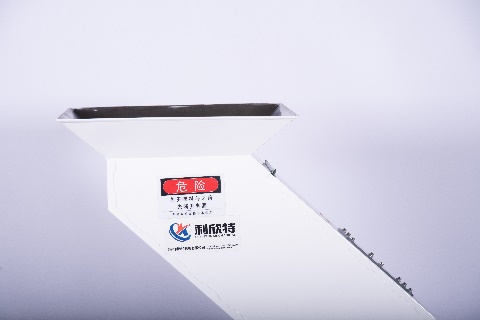

Conical design, maximum storage
Features:
1. Using SKD-11 material and cast steel frame structure, strong and durable
2. Adopting a well-designed "concave" tool, greatly extending the service life of the machine
3. The static can be used repeatedly four times before regrinding.
8. European design, steel structure box, solid use, beautiful and firm.
9. High-efficiency crushing and recycling improve production efficiency.
