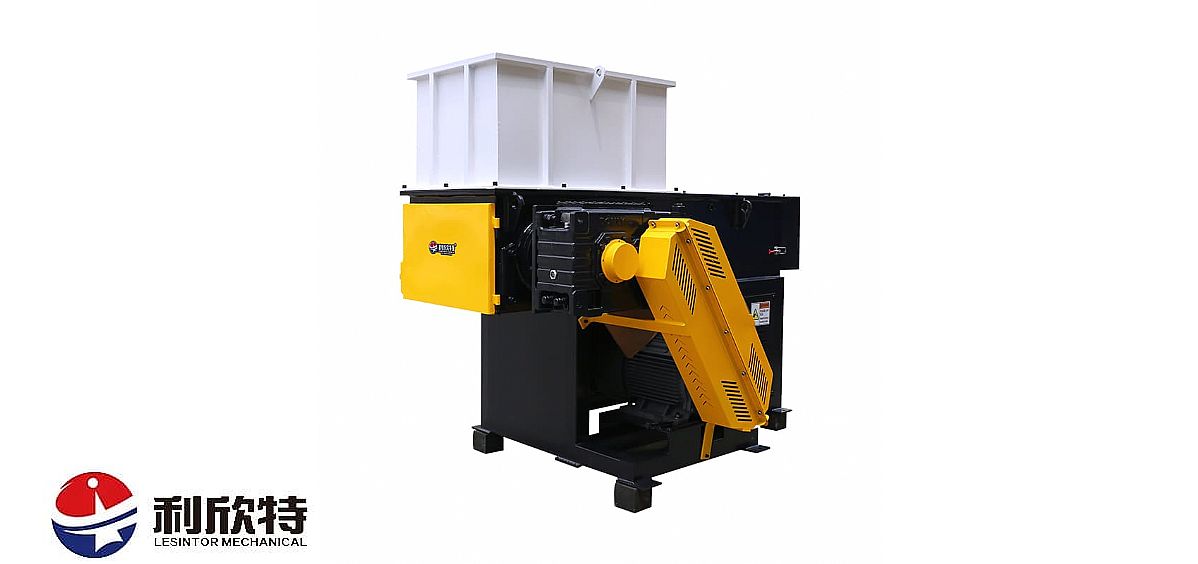

Single Shaft Shredder

Ref: RF03

Single-shaft shredders, also known as plastic lump shredding machines or crate shredders, can shred quite thick and tough materials, such as large plastic pipes. They are especially suitable for recycling different materials. The shredder uses close-packed structures with a hydraulic feeding system. It features advanced equipment, strong crushing capacity, and high output.

Price Range

Payment Options: Available on Request
Delivery Time: Available on Request
Shipping Zones: Worldwide

Wholesale Inquiry

Product Description:

A precisely processed combined frame made of extra-thick plates, a Lange-angle, hexagon prism of power slewing axis, and a big hopper with a large caliber for feeding big volume material.
Unique hydraulic pushing system accelerates shredding speed.
Each rotor blade has four cutting edges, and fixed blades have two edges, enabling reutilization after one edge is abraded.
PLC control system with automatic overload protection and auto reverse switch.
The Single Shaft Shredder, Plastic Lump Shredding Machine, or crate Shredder can be adjusted to meet customers' special requirements for throughput volume, processing material, etc.

Machine Characteristics:

The machine can efficiently recycle large quantities of intractable material, such as wood, large hard and solid materials (waste lumps from the extruder), plastic containers, buckets, plastic pipes, film, fiber, paper, etc.
Its advantages include a firm design, low noise, low power consumption, and a long working life.
The size of the output scraps can be adjusted to a minimum of 16 mm (by adjusting the screen), and the screen is not needed if there are no size requirements for the output scraps.
Low noise.

Application:

The machine applies to Plastic containers/crates, Timber, Aluminum profiles, Iron/metal, Home appliances, Tires, Plastic film (LDPE agriculture film/ PP woven bags), etc.

Single Shaft Shredder Application

Product Parameters:

Model	600	800	1000	1300
Motor power (KW)	22	37	45	75
Brand of motor	Domestic famous brand motor	Domestic famous brand motor	Domestic famous brand motor	Domestic famous brand motor
Length of knife shaft(mm)	600	800	1000	1300
Reducer	H2HHB-4	H2HHB-5	H2HHB-6	H2HHB-7
Material of blade	SKD-11	SKD-11	SKD-11	SKD-11
Rotary knife(pc)	26	46	56	72
Fix knife(pc)	1	1	1	1
Diameter of knife shaft(mm)	Φ300	Φ400	Φ400	Φ400
Power of hydraulic system(kw)	2.2	3	4	5.5
Diameter of sieve	Φ50	Φ50	Φ50	Φ50
Size of the final production(mm)	Length: 30-100mm Width: 30mm Thickness: 50mm	Length: 30-100mm Width: 30mm Thickness: 50mm	Length: 30-100mm Width: 30mm Thickness: 50mm	Length: 30-100mm Width: 30mm Thickness: 50mm
Output(kg/h)	200-400	400-700	600-1000	700-1500
Dimension of the machine（mm）	220014501900	270017502200	320019502200	420021502200
Dimension of the package（mm		270019002200
Weight of machine(kg)	2800	3500	4800	6000

More details:

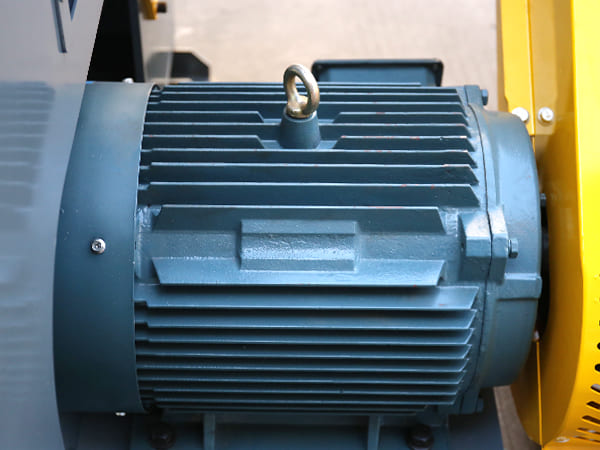

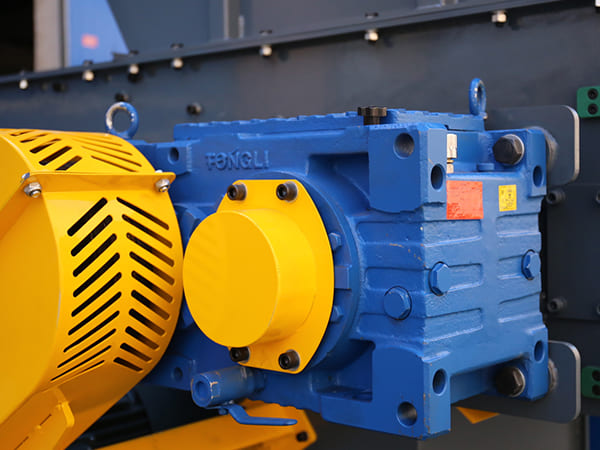

Pure copper motor Overload protection protects human and machine safety, stable performance, low failure rate, and long life.	Gearbox The gearbox is welded with highly precise steel plates. It has good contact, low noise, and a long service life.

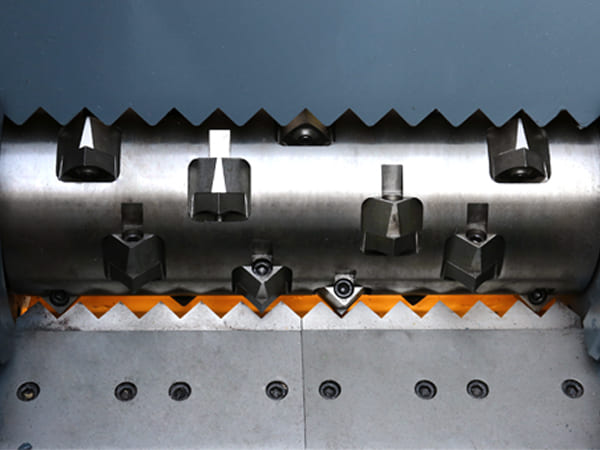

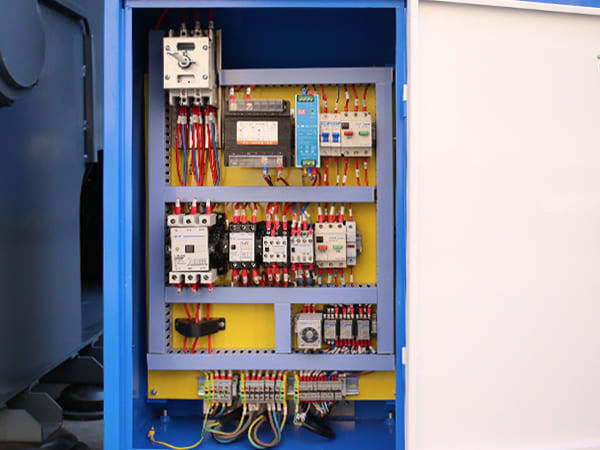

Knife chamber SKD-11 material, after forging annealing, heat treatment, tempering, and heat preservation, wear resistance, and long service life.	Control box High-reliability electrical control components, professional control, neat wiring.
