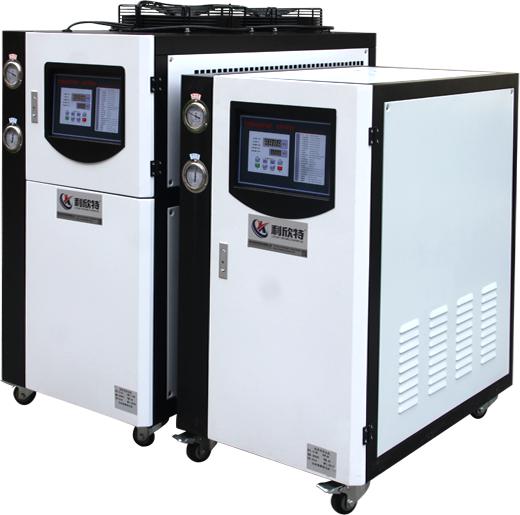

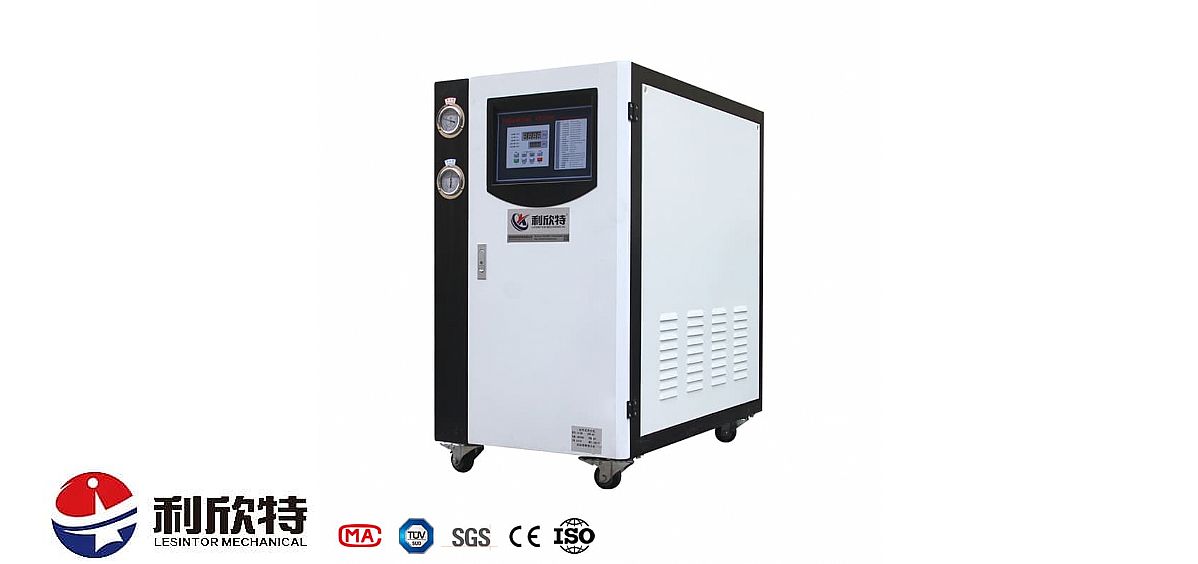

Portable Cold Water Chiller Machine

Ref: RF04

An industrial chiller is a self-contained, complete cooling device that extracts heat from various liquids and releases it into the atmosphere by maintaining a cold cycle. The system is designed to manage temperature control efficiently. The unit includes a refrigeration circuit, a fluid reservoir, and a process pump, all integrated to ensure optimal functionality. The cooled liquid, also known as coolant, is then directed to a heat exchanger to cool another liquid, equipment, or air. The product breaks conventional cooling technology and achieves an accurate temperature control range of 5 ℃ —50 ℃. Industrial water chillers have a fashionable appearance, smooth lines, a microcomputer control panel, simple operation of electrical components, and convenient maintenance to operate the system seamlessly, providing a reliable solution for various industrial cooling needs. The Lesintor portable water chiller has a wide range of applications and a good refrigeration effect to satisfy your needs.

Price Range

Payment Options: Available on Request
Delivery Time: Available on Request
Shipping Zones: Worldwide

Wholesale Inquiry

In order to help engineers, LESINTOR MACHINE's cold water chillers are specifically designed to meet the most recent water regulations. We offer a high-quality selection of industrial water chillers in China that can be used in many industries, including chemical, cosmetic, and food manufacturing. The portable water chiller is effective for a range of load applications.

Lesintor is a professional manufacturer, supplier, and exporter of a wide variety of superior water-cooled chillers. We are devoted to providing water chillers and strive to meet the expectations of our valued customers.

Machine characteristics for air water-cooled chiller:

• High efficiency and low failure

• Small vibration and low noise

• Stable operation, energy-saving and power-saving

• Convenient maintenance, long life, and other advantages

Product Parameters

Parameter		Model	03W	05W	08W	10W	12W	15W	20W	25W	30W
Cooling Capacity	KW/hr	50HZ	9.59	15.91	24.85	31.83	38.37	50.14	67.14	81.53	99.19
Cooling Capacity	Kcal	50HZ	8251	13690	21370	27370	32994	43120	57748	70120	85303
Temperature Range	5℃-Room temperature (Below 0℃ can be customized)
Power Supply	3N-380V 50HZ
Total Power	KW		2.575	4.5	6.75	9	10.5	12.5	17.2	20.95	26
Control Mode			Copper tube						Expansion Valve
Compressor	Type		Hermetic scroll type or piston
	Number of compressors		1	1	2	2	2	2	2	2	3
	Compressor Brand		Valley wheel	Panasonic
	Power KW		2.2	3.75	6	7.5	9	11	15	18.75	22
	Use refrigerant		R22
condensation	Form		Straight tube type
Evaporator	Water quantity M3/H		1.65	2.75	4.27	5.47	6.59	8.62	11.55	14.03	17.06
	Water solubility M3		0.05	0.06	0.15	0.15	0.15	0.285	0.3	0.38	0.38
	Tank capacity（L）		45	50	140	145	190	200	245	270	300
	Import and export caliber		DN25				DN50			DN65
Circulating pump	Power KW		0.37	0.37	0.75	0.75	1.5	1.5	4	4	4
	Flow（L/MIN）		90	90	170	170	340	340	500	800	800
	Lift m		18	18	16	16	17	17	17	18	18
Machine size	L/mm		870	870	1300	1300	1200	1460	1750	1750	1800
	W/mm		550	550	680	680	610	700	760	760	800
	H/mm		900	900	1300	1300	1260	1400	1500	1500	1500
Unit weight	KG		120	150	210	290	310	400	440	690	760

Product Details

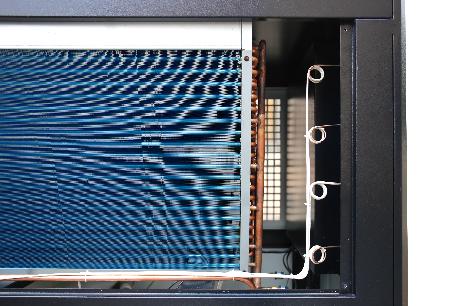

Condenser

All copper condensers have a better heat dissipation effect.

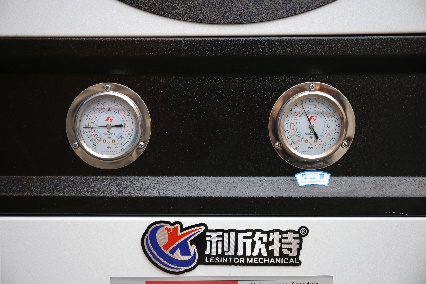

High and low-pressure oil meter

Using the WIND brand oil meter, the digital display is clear, and the data is accurate.

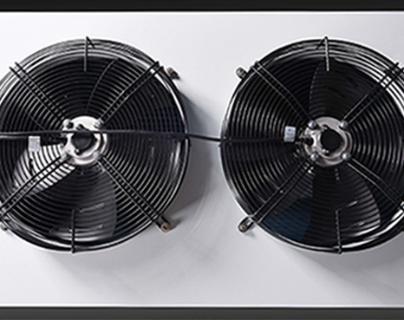

Top fan

Large elevation angle, large air volume, low speed, silent external rotation axial fan, 30% energy saving in sound effect.

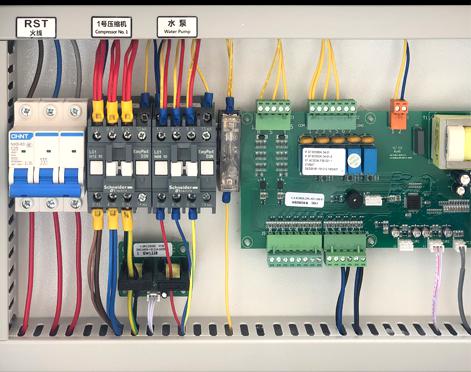

Control box

High reliable electrical control components and professional control procedures to ensure long-term stable operation.

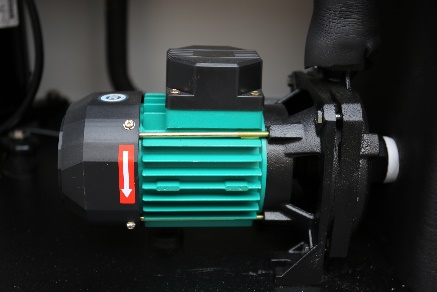

Brand pump

Lightweight, stable throttling, light corrosion resistance

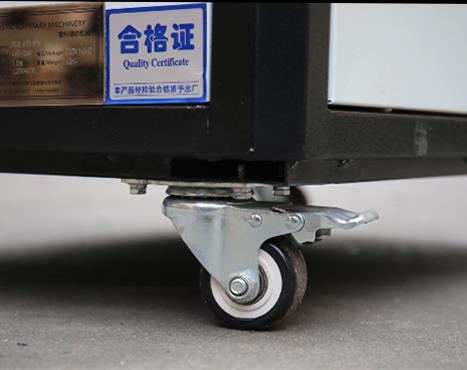

Bottom universal wheel

With two universal wheels and two with brakes, the movement is super easy.

Features:

1. The cooling temperature range is 5℃-50℃.

2. 304 stainless steel heat preservation water box; anti-icing protection device.

3. Using R22 refrigerant, the refrigeration effect is good.

4. The refrigeration circuit is controlled by a high-low pressure switch.

5. The compressor and pump have overload protection.

6. Fast heat conduction and good heat dissipation effect.

7. The copper coil-type evaporator has an excellent cooling effect.

8. Using an intelligent microcomputer control system, the temperature control accuracy can reach ±2℃.

9. Simple operation, reasonable structure design, and convenient maintenance.
