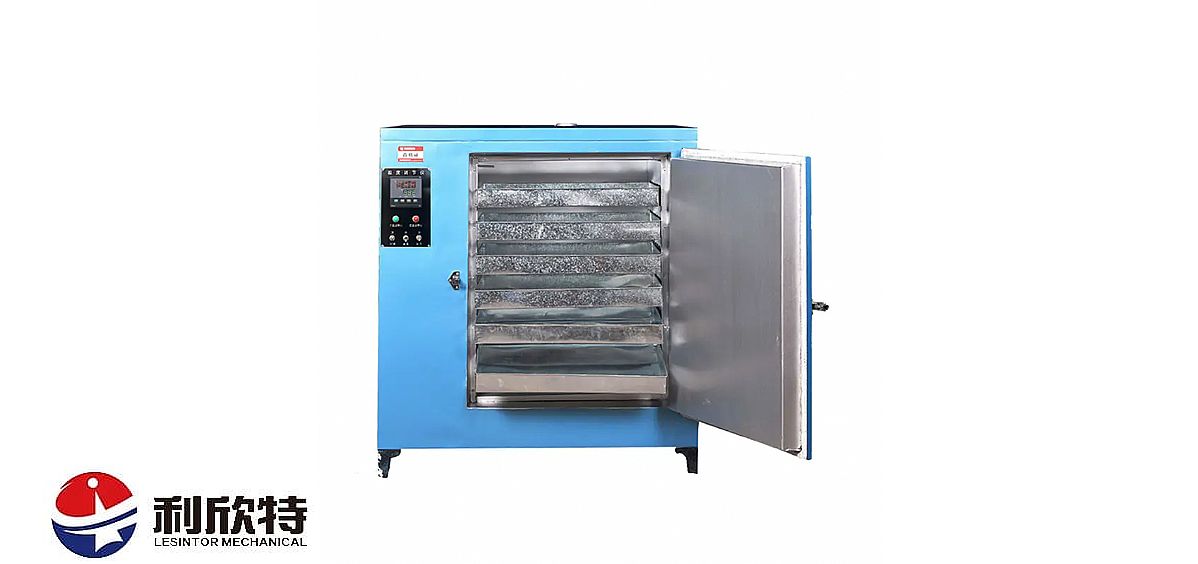

Industrial Drying Oven

Industrial Drying Oven - IH01
Industrial Drying Oven - IH01
Industrial Drying Oven - IH01
  1. Industrial Drying Oven - IH01
  2. Industrial Drying Oven - IH01
  3. Industrial Drying Oven - IH01
Ref: IH01
The Lesintor oven is widely used for drying any plastic raw materials and can bake thousands of materials of different materials and colors at the same time. It is especially suitable for drying materials with high-temperature accuracy, low dosage, and many colors. It is also suitable for preheating or drying in food, pharmaceutical, electronics, electroplating, and other industries.
Price Range
Payment Options: Available on Request
Delivery Time: Available on Request
Shipping Zones: Worldwide
Wholesale Inquiry



Machine features

• Digital display temperature control, precise control of drying temperature

• Time control can be added to facilitate the setting of drying parameters of various materials

• High-quality insulation materials, high sealing design, avoid unnecessary energy consumption

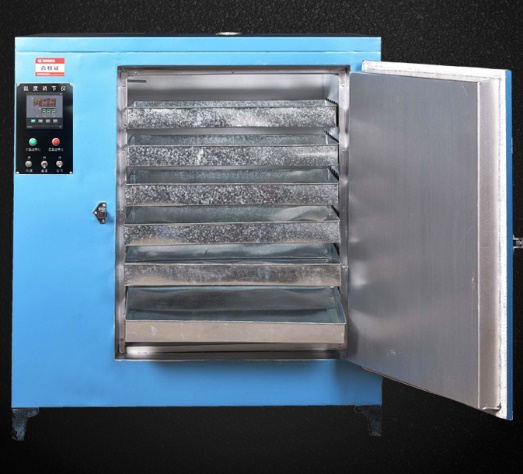

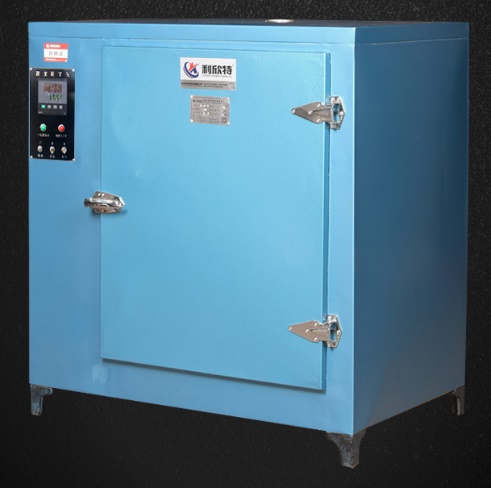

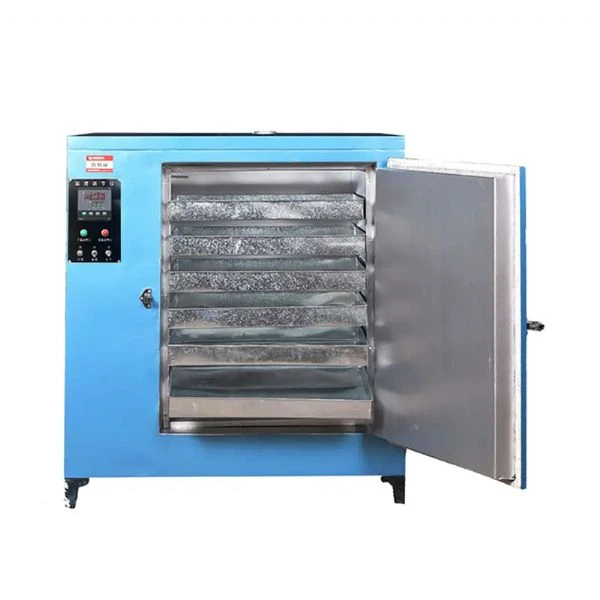

Product picture

drying oven
drying oven

Application industry

drying oven applications

Certifications:

GB/T19001-2016/ISO9001:2015 "Management System Certification Certificate"
GB/T 24001-2016/ISO14001:2015 "Management System Certification Certificate"
CCTV advertising ID number：1962573230050061 "CCTV Advertising Broadcasting Certificate"
"Quality·Service·Integrity AAA Enterprise" National Key Recommended Products in China's Plastics Industry"

Product parameters

Standard

Main technical parameters SC101-1A SC101-2A SC101-3A SC101-4A SC101-5A
Studio size（Deep * wide * high mm） 350*450*450 450*550*550 500*600*750 800*800*1000 800*120*1200
Outline size（Deep * wide * high mm） 580*840*820 680*940*930 750*1020*1120 1040*1200*1390 1100*1620*1670
Scope of use(oc) Greenhouse ~250
Voltage（V） 220 220 220 380 380
Motor power(kw) 2.2 3.2 4 9 12
Oven layer 4 5 6 6 6
Number of pallets 4 5 6 12 16
Drying ability(kg) 20-30 40-60 60-80 100-120 240-300
Machine weight(kg) About60 About70 About120 About260 About400

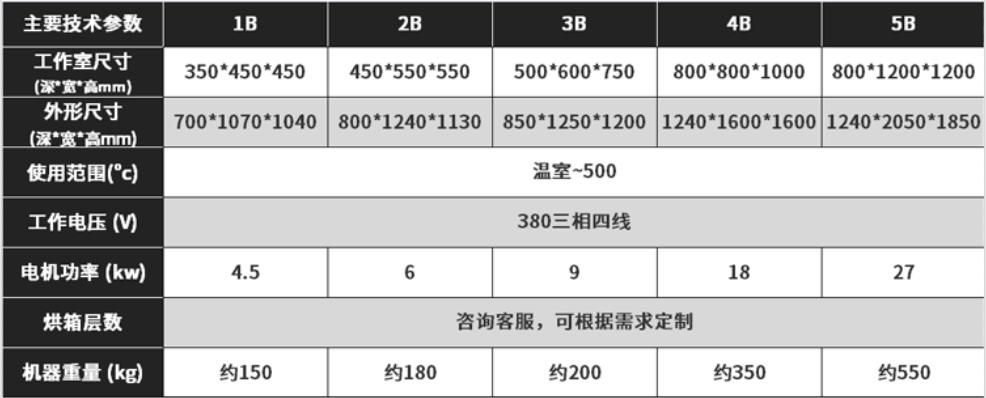

high-temperature modification

drying oven high-temperature modification

Partner: （names not listed in order）

Lesintor partner

Product Details

drying oven

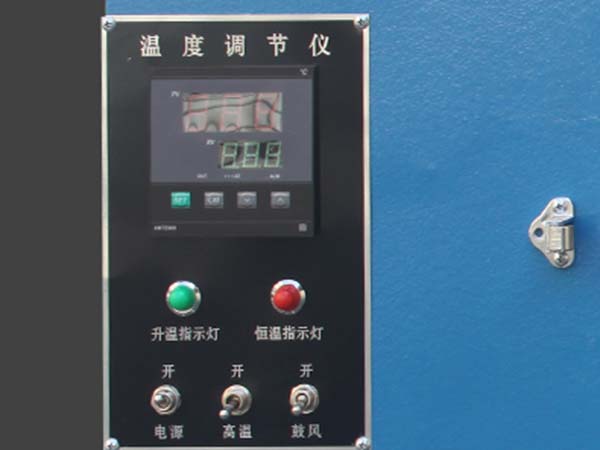

Thermostat

When working, the green light is on when the temperature rises to the specified temperature and the red light is on. Turn on the sequence: power supply - air blast - high temperature

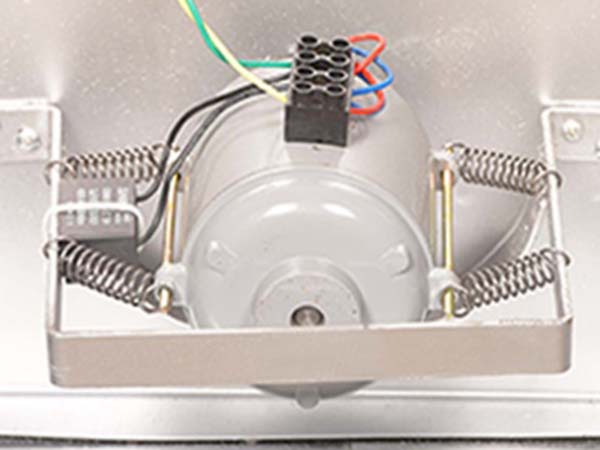

Brand motor

blade, with an air convection breeze device, the cavity of the air can be renewed circulation

drying oven
drying oven

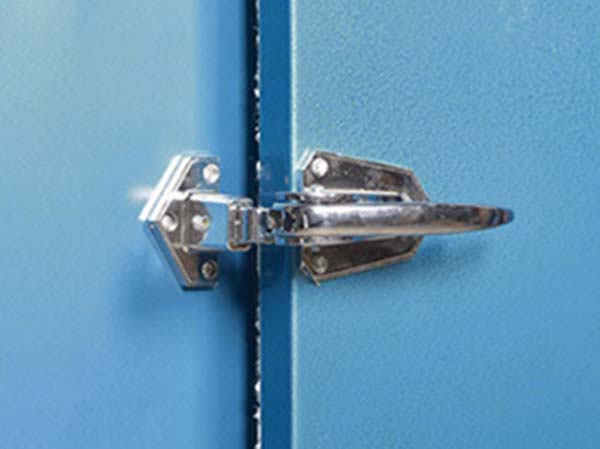

The handle

With a suction door handle, gently push the safe lock. Arc handle design, the use of a better feel

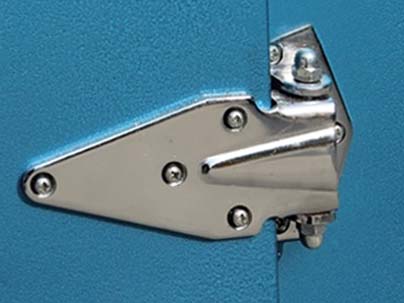

Hinge

Oven special big hinge, high strength hinge, multi-screw fixed, and oven in the same plane, safe

drying oven
drying oven

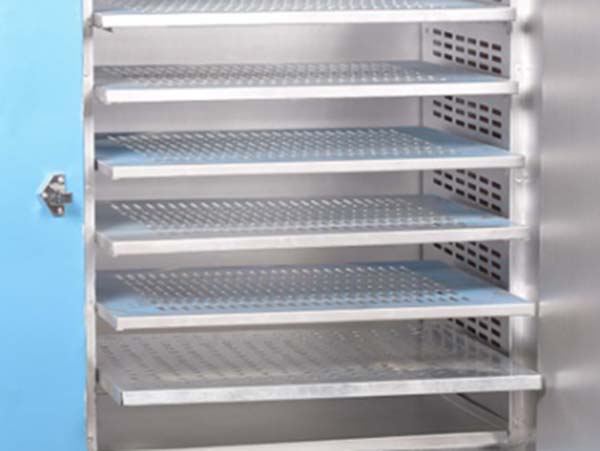

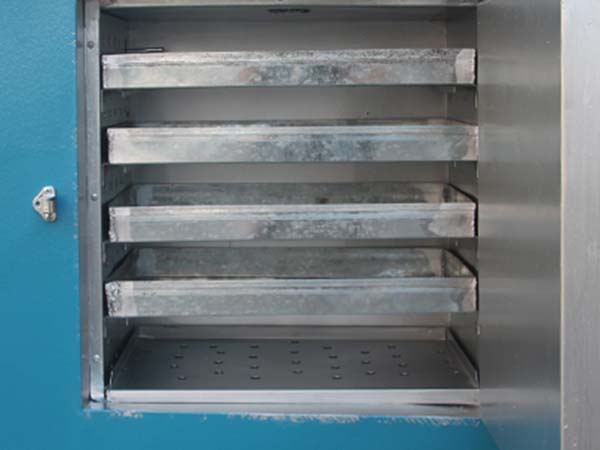

Tray

Multilayer tray, increase capacity, heat evenly

Clapboard

Multi-layer clapboard with holes for uniform heating

drying oven

Features:

1. High temperature and heat insulation cotton, maintain temperature, reduce energy consumption, real-time monitoring, real-time adjustment, more accurate

2. Intelligent P, I, D temperature control panel, accurate temperature control, simple operation

3. Air circulation system, uniform temperature in the box, good drying effect
