Ref: PD02

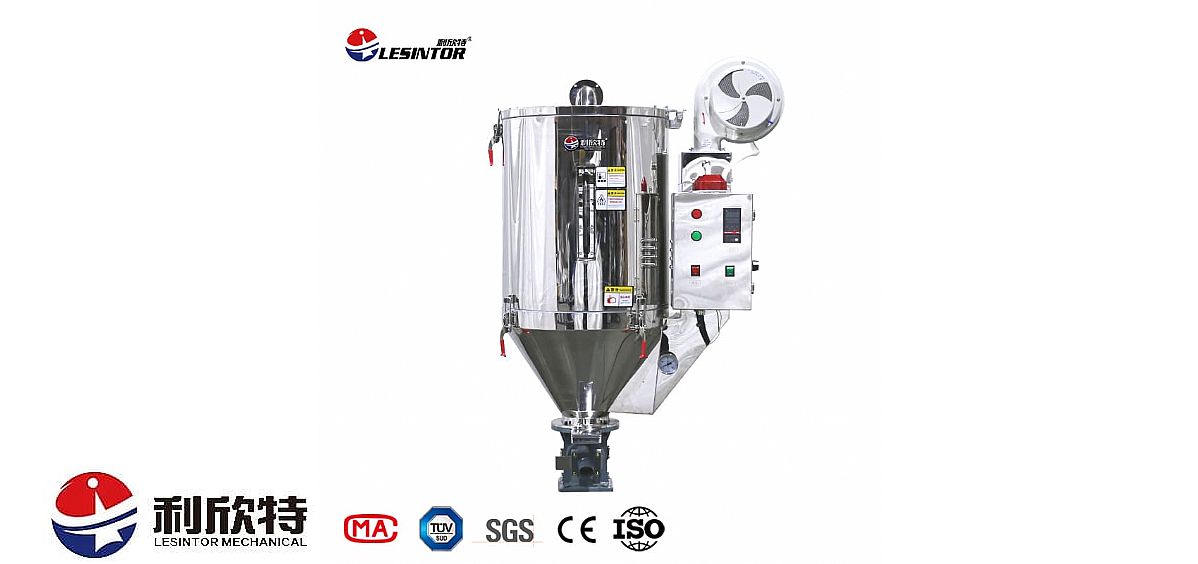

Lesintor energy-saving plastic dryer can dry raw materials that are wet due to packaging and transportation and remove moisture from the surface. It is suitable for raw materials such as PP, PE, ABS, and PVC. It can easily dry the moisture in plastic particles, improve product quality without contaminating raw materials, and can directly replace ordinary hopper dryers.
Price Range
Payment Options: Available on Request
Delivery Time: Available on Request
Shipping Zones: Worldwide
Wholesale Inquiry

WHAT IS AN ENERGY-SAVING DRYER?

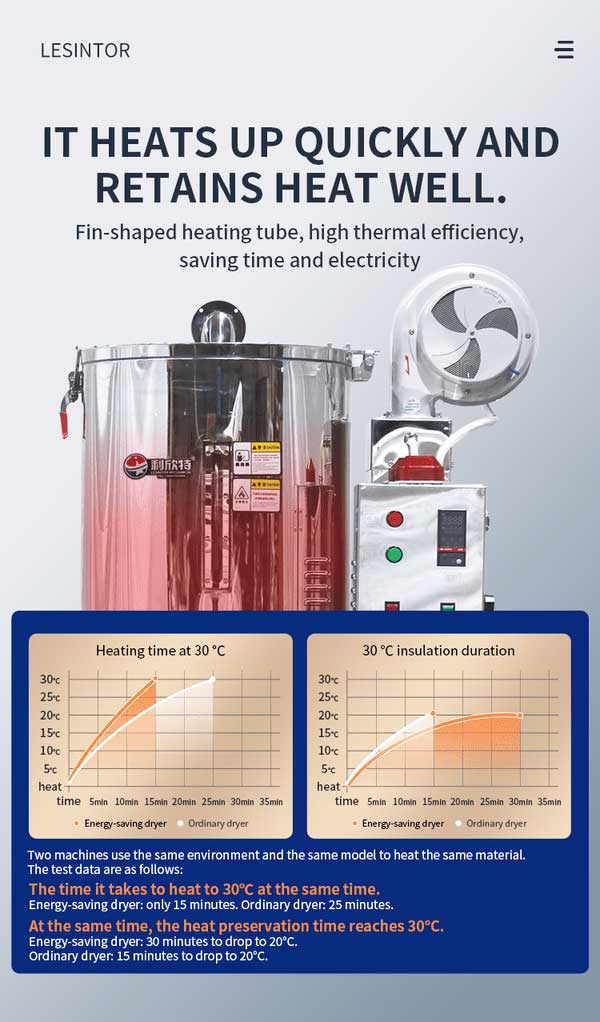

RAPID HEATING AND STABLE OPERATION

Test data at the same ambient temperature of 21'c and set temperature of 120'c. Taking 10 100KG hoppers as an example, working 26 days a month and 24 hours a day, the test data is:
  • Power saving per hour: 2.4 degrees
  • The daily power saving is 24 hours * 2.4 degrees= 57.6 degrees.
  • The annual power saving is: 57.6 kWh * 26 days * 12 months= 17971.2 kWh
  • The annual power saving of 10 units is 17971.2 kWh * 10 units = 179712 kWh

Product Parameters:

Model Electrothermal
(KW)
 Fan(w) Capacity(kg) Barrel height(mm) Base
Dimension(mm)
 Dimension
(mm)
6KG 1.5 100 8 475 160 φ210*W530*H630
12KG 2.2 100 16 550 160 φ300*W600*H790
25KG 3 135 25 765 160 φ410*W730*H920
50KG 4.8 155 50 905 160 φ490*W790*H1105
75KG 5.5 155 75 1050 160 φ560*W900*H1200
100KG 7.8 215 100 1100 175 φ610*W970*H1215
150KG 8.5 215 150 1285 190 φ650*W1010*H1350
200KG 10 320 200 1450 220 φ748*W1200*H1820
300KG 15 350 300 1480 220 φ810*W1280*H1920
400KG 19 415 400 1840 270 φ870*W1350*H2300
500KG 21 1030 500 1900 270 φ810*W1280*H2400

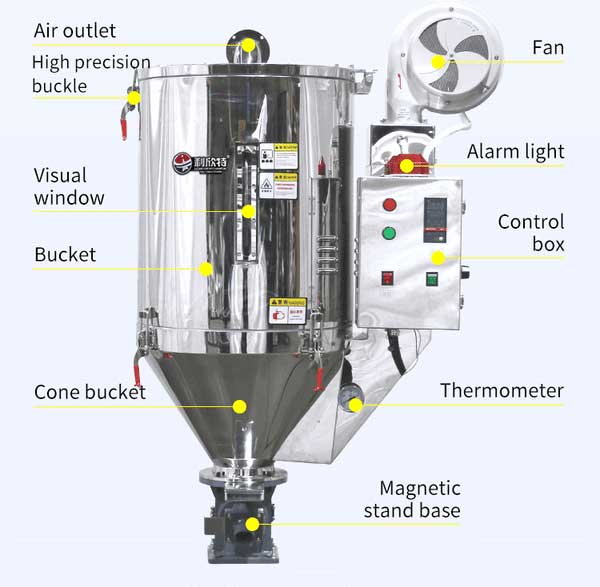

More Details:

HIGH-PRECISION BUCKLE
 Dryer Fan

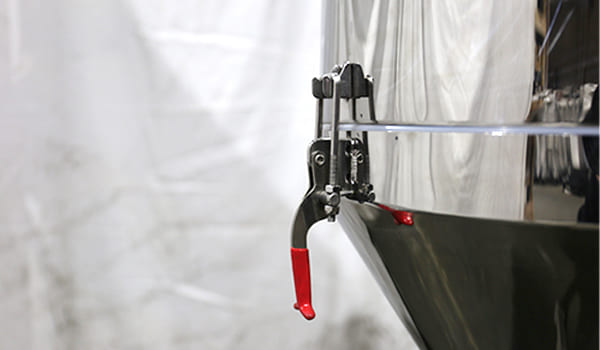

HIGH-PRECISION BUCKLE
All stainless steel thickened buckles with good sealing can be opened by lifting them.

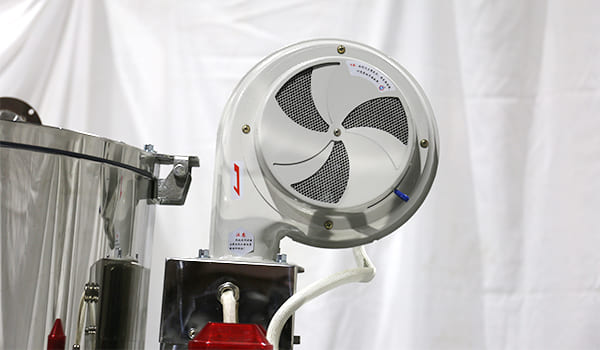

 FAN
Pure copper core motor, Strong power, stable operation, and low noise
THERMOMETER
 CONTROL BOX

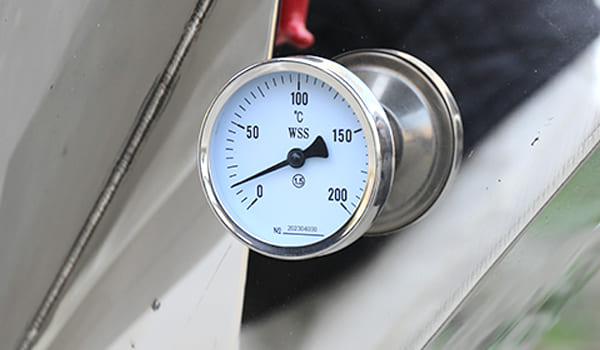

THERMOMETER
It has high sensitivity and can easily grasp the temperature in the barrel.

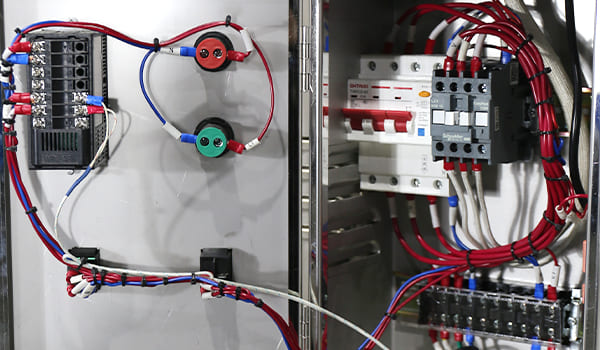

 CONTROL BOX
High-reliability electrical control components ensure long-term, stable operation.
VISUAL WINDOW
 CONICAL SCREEN

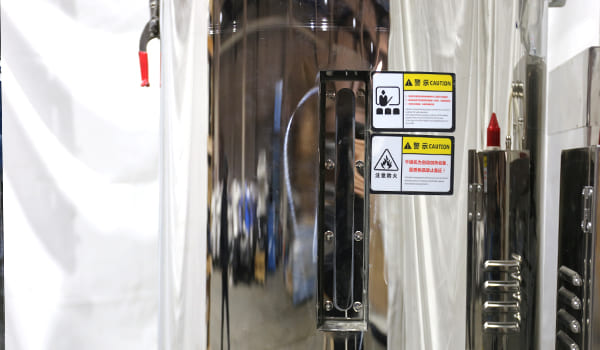

VISUAL WINDOW
Observe the real-time status of materials in the barrel.

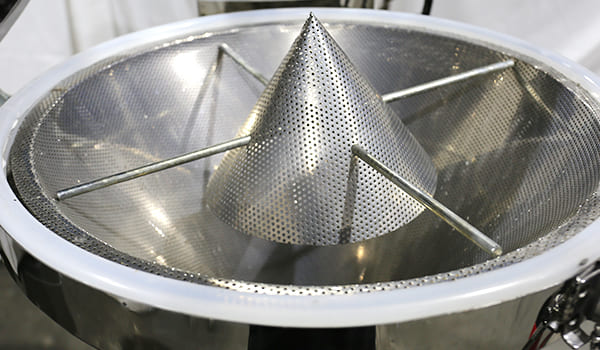

 CONICAL SCREEN
The stainless steel screen makes the bulk material more uniform.

Product Characteristics

1. Energy saving: can achieve an energy saving rate of more than 30%.
2. Intelligent temperature control: PID intelligent temperature control design, precise temperature control, and rejection of burning/caking.
3. It heats up quickly and retains heat well: Double-layer insulation, aerospace-grade insulation material, barrel surface temperature below 40°C.
4. Stainless steel body: The whole machine has a stainless steel body, an aerogel felt insulation layer, and a long-life heating tube.
5. Long life: Long service life and strong corrosion resistance.
