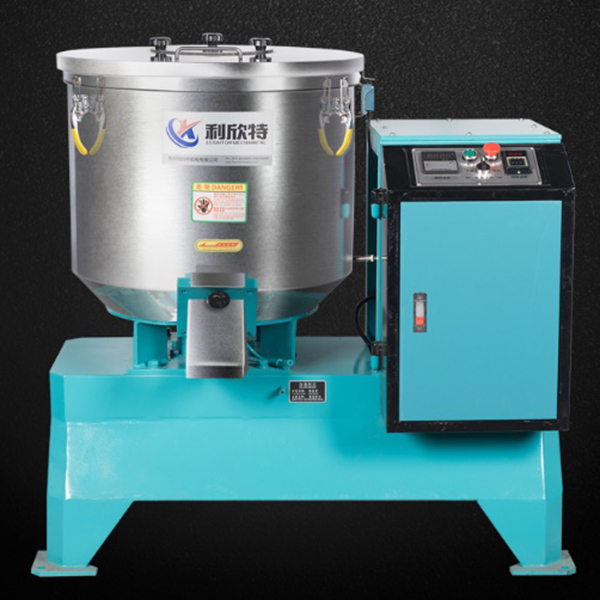

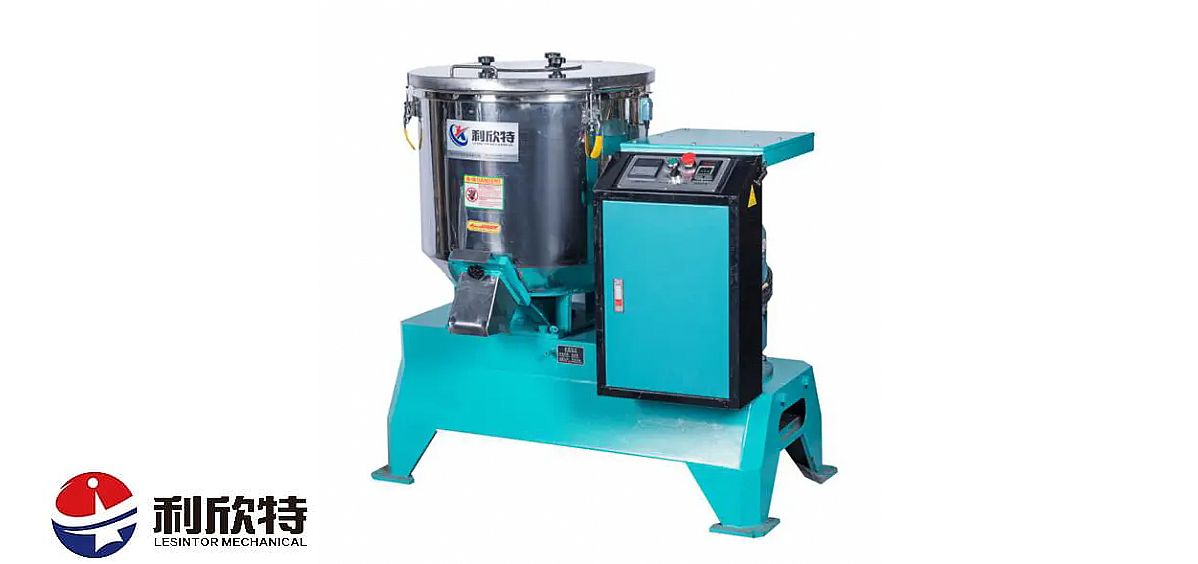

Lesintor High Speed Drying Machine

Ref: LS01
Lesintor high-speed drying machine uses high-speed rotating friction heating to release the water molecules in the raw material, so as to achieve the dual functions of high-efficiency drying and uniform color mixing, especially suitable for powder, crushing, or washing recycled materials drying/color mixing processing, simple discharging, no need to start the motor when discharging.
Price Range
Payment Options: Available on Request
Delivery Time: Available on Request
Shipping Zones: Worldwide
Wholesale Inquiry



Machine features

• With automatic temperature control, timing, overload protection, and other automatic functions; Double layer stainless steel insulation bucket, blade, brake, and bucket cover are made of stainless steel material;

• Specific automatic temperature control, timing, overload protection, and other functions.

• Stainless steel barrel and pulp leaf to ensure that the plastic raw material is not contaminated.

Product picture

drying machine

Application industry

drying machine application industry

Certifications:

GB/T19001-2016/ISO9001:2015 "Management System Certification Certificate"
GB/T 24001-2016/ISO14001:2015 "Management System Certification Certificate"
CCTV advertising ID number:1962573230050061 "CCTV Advertising Broadcasting Certificate."
"Quality·Service·Integrity AAA Enterprise" National Key Recommended Products in China's Plastics Industry"

Product parameters

Model 25 50 100 200
Power(kw) 5.5 7.5 15 30
Number of matches(hp) 7.5 10 20 40
Outline size(mm) 1000*690*1240 1170*830*1350 1340*980*1520 1700*1300*1700
Voltage(v) 380V 50HZ
Mixing quantity(kg) 25 50 100 200
Speed(R/min) 480
Machine weight(kg) 200 230 270 700

Partner: (names not listed in order)

Lesintor partner

Product Details

drying machine

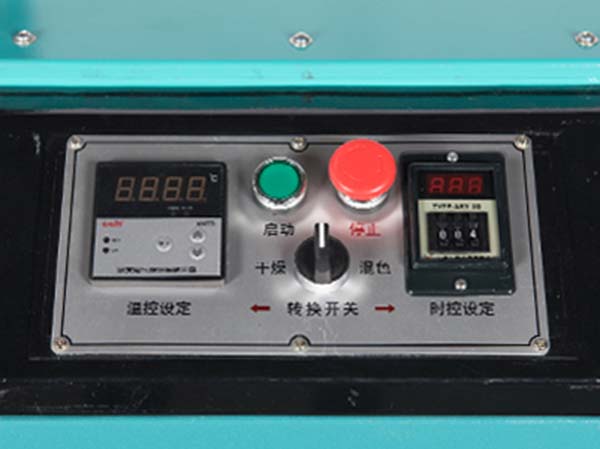

The control panel

Users can automatically set the temperature and time and switch between drying and color mixing functions.

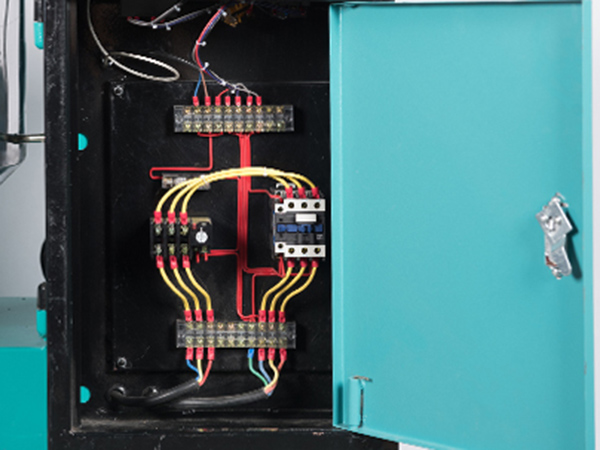

Control electric box

Delixi contactor, wiring neat, clear at a glance

drying machine electric box
drying machine electric box

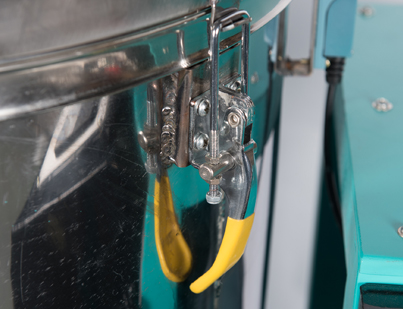

Travel switch

Open the lid and immediately stop running to protect the safety of man and machine.

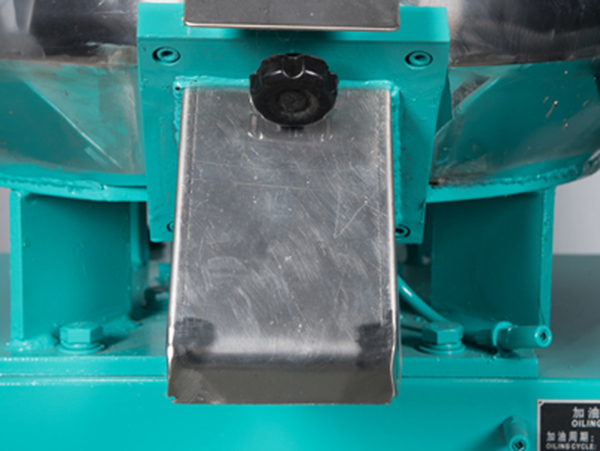

Feed opening

Increase the blanking mouth, blanking more quickly.

drying machine feed opening
drying machine feed opening

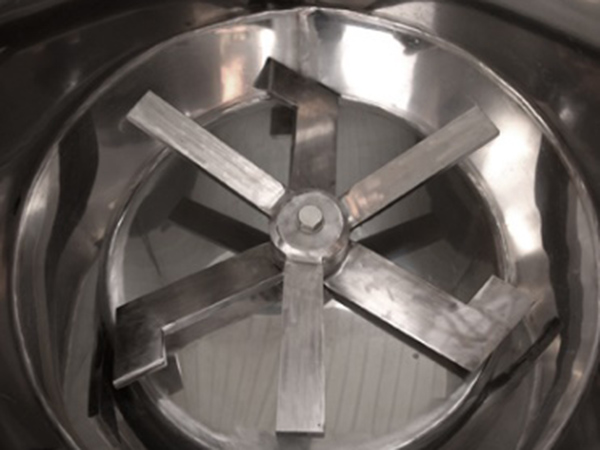

Thicken and widen the blade

Scientific and reasonable structure in the work can be fully mixed raw materials, and the load is reduced to the minimum, saving time and electricity.

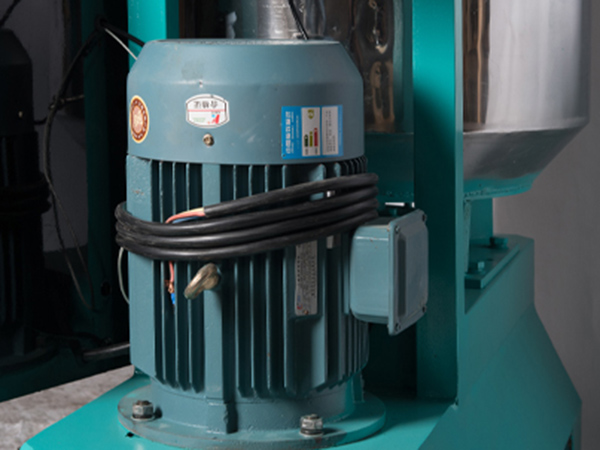

Pure copper motor

100 % pure copper wire is more powerful and has a long life

drying machine

Features:

1. Integrated intelligent control integrates temperature and time control into one, which is convenient for setting various parameters.

2. Real-time monitoring, real-time adjustment, and more accurate

3. Conical shape angular design of the cylinder with a square blade so that the raw material rotation faster, the motor utilization rate is higher, and easier to clean in the barrel

4. Double-layer insulation device Double-layer stainless steel insulation barrel, blade, brake, barrel cover, and so on are stainless steel material
