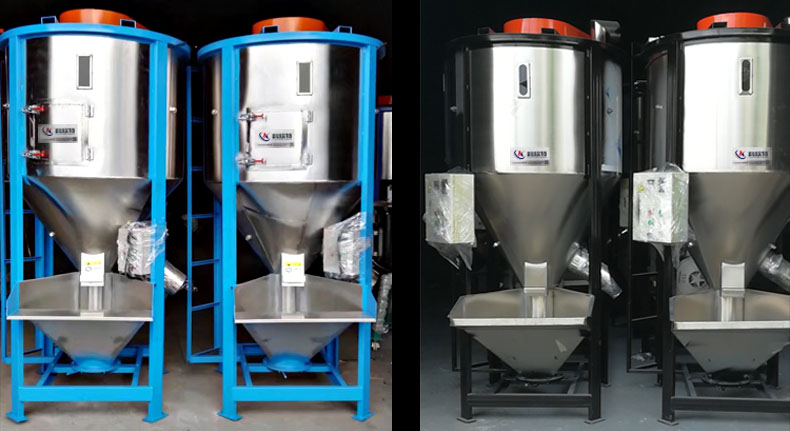

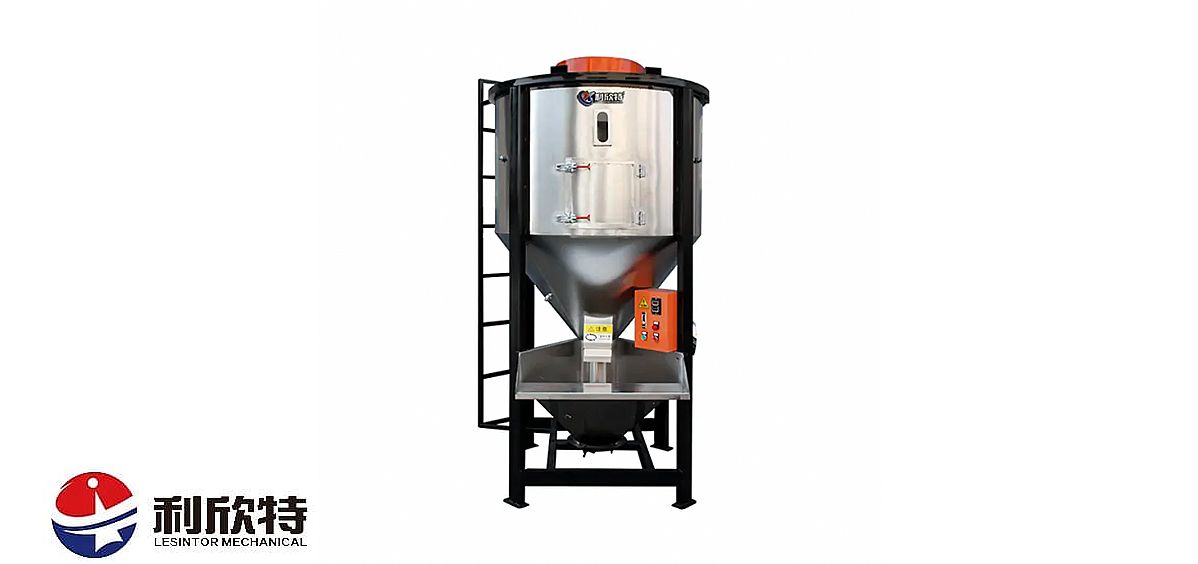

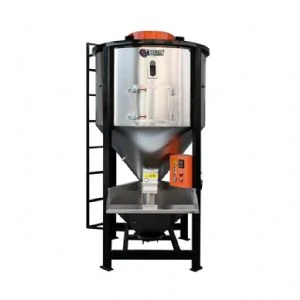

Large Vertical Mixer

Ref: LM01

Lesintor’s super-large vertical drying mixer adopts spiral spiral circulation stirring to make the raw materials more uniform and fast. The product is suitable for mixing and mixing new and old materials and color mixing of various materials and materials, and the effect is better. Built-in electronic control safety protection design to ensure safe operation.

Price Range

Payment Options: Available on Request
Delivery Time: Available on Request
Shipping Zones: Worldwide

Wholesale Inquiry

Machine characteristics:

•Quick mixing, cycle drying

•Seamless 304 stainless steel heating tube copper link heat conduction

Product Details

Model（kg)	Host power(kw)	Heating power(kw)	Capacity（m³）	Speed（r/min)	Outline size（m)	Net weight(kg)
300	2.2	12	0.75	320	1.1*2.3	260
300 -Drying	2.2	12	0.75	320	1.1*2.3	260
500	3	15	1	320	1.2*2.5	420
500-Drying	3	15	1	320	1.2*2.5	420
1000	4	15	2	320	1.5*2.75	620
1000-Drying	4	15	2	320	1.5*2.75	620
2000	5.5	15	4	320	1.85*3.3	1050
2000-Drying	5.5	15	4	320	1.85*3.3	1050
3000	7.5	18	6	320	2.0*3.75	1250
3000-Drying	7.5	18	6	320	2.0*3.75	1250
5000	7.5	15*2	10	320	2.4*4.35	2000
5000-Drying	7.5	15*2	10	320	2.4*4.35	2000
10000	11	18*2	20	320	3.0*5.3	2300
10000-Drying	11	18*2	20	320	3.0*5.3	2300
15000	15	18*2	30	320	3.1*6.5	5000
15000-Drying	15	18*2	30	320	3.1*6.5	5000

Product Details

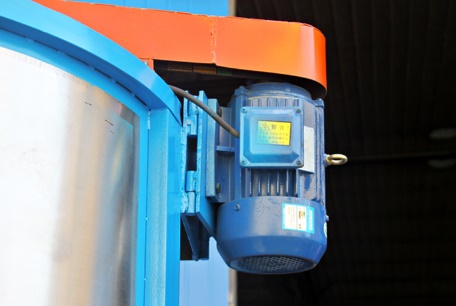

Pure copper motor

Made of high-quality copper wire, surging power, stable and durable

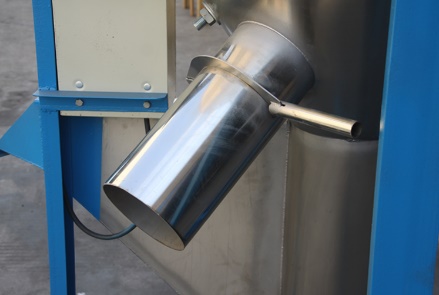

Feeding port

Enlarge the large feed port and quickly unload the material.

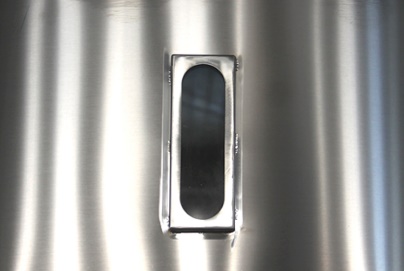

View Window

Stamping and forming, see the material.

Clean the door

Convenient to clean the inside of the machine

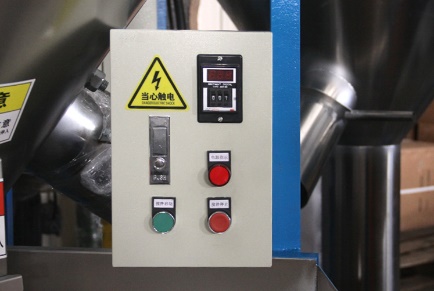

Control box

Equipped with automatic timing and thermal overload protection

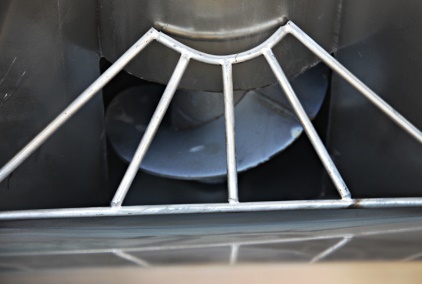

The feed opening

The guillotine-type unwinding is convenient and does not jam.

Features:

1. Spiral circulation stirring makes the raw material mix more evenly and quickly.

2. It is suitable for mixing new and old materials and mixing colors for various desired materials. The mixing effect is better.

3. Equipped with an electric control safety protection device to ensure safe operation.

4. The baking type can be customized.
