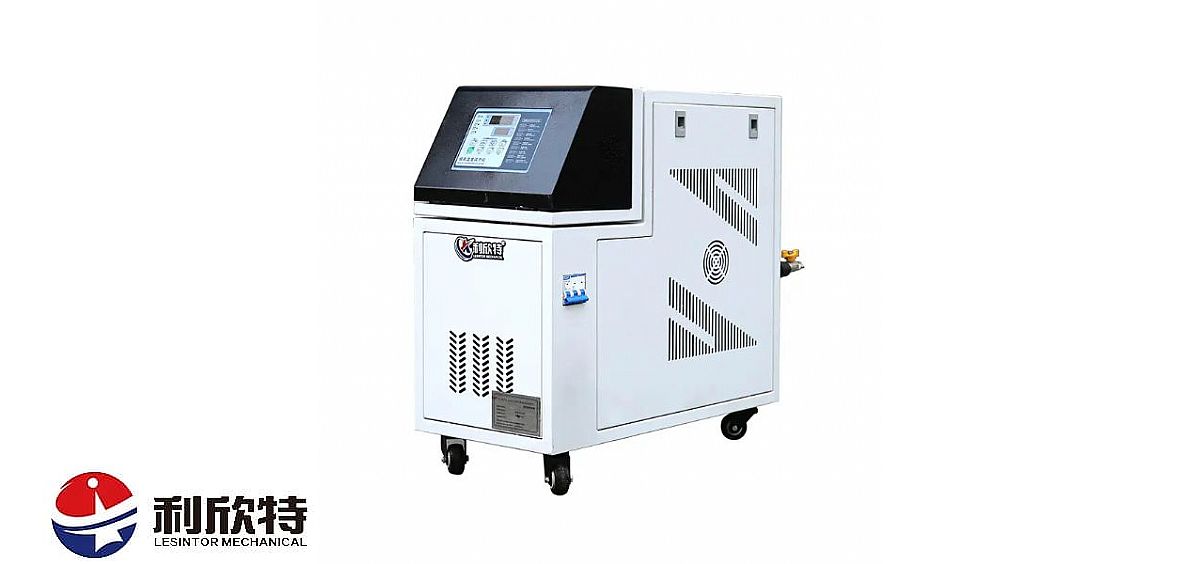

Mold Temperature Controller

Ref: RF05
Lesintor injection mold temperature controller has a wide range of applications and is mainly used in the temperature control industry of injection molds. With the wide development and application of the machinery industry, mold temperature controllers are widely used in various industries such as plastic molding, die-casting, rubber tires, rollers, chemical reactors, bonding, and internal mixing. The temperature accuracy of Lesintor mold temperature machine can reach ±0.1℃

Price Range
Payment Options: Available on Request
Delivery Time: Available on Request
Shipping Zones: Worldwide
Wholesale Inquiry



Machine characteristics for plastics molding temperature controller:

• Automatic exhaust after power-on

• Over-temperature protection and under-temperature protection

• Data error protection

• Reverse flow protection

• Microcomputer control

• Pump overload protection

• Cooling water pressure protection

• Energy saving and environmental protection

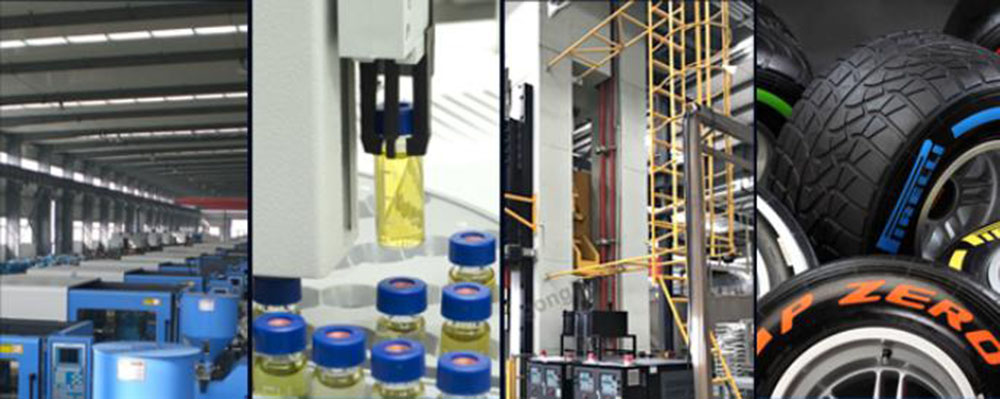

Applicable scene

mold temperature controller applicable scene

Certificate

GB/T19001-2016/ISO9001:2015 "Management System Certification Certificate"
GB/T 24001-2016/ISO14001:2015 "Management System Certification Certificate"
CCTV advertising ID number:1962573230050061 "CCTV Advertising Broadcasting Certificate."
"Quality·Service·Integrity AAA Enterprise" National Key Recommended Products in China's Plastics Industry"

Specification

Model Temperature Machine

Model

Temperature

Cooling mode

Heat transfer medium

Temperature range

Cooling water piping

Input power

Heating capacity

Pump head(M)

Pump flow(L/min)

Die connector

Outline size

Weight(KG)

LXT-6KW

Water type 99℃

Direct cooling

Water

35-128
Single system
35-120

1/2

6.37KW

6KW

30

35

3/8*2

660*300*580

46

LXT-9KW

9.75KW

9KW

30

35

3/8*4

660*300*580

51

LXT-12KW

12.75KW

12KW

30

35

3/8*4

620*340*700

60

LXT-18KW

19.5KW

18KW

38

550

3/8*4

900*500*960

85

LXT-24KW

25.9KW

12+12KW

40

320

3/8*4

900*500*960

82

LXT-6KW

Oil type
180℃

Indirect cooling

Oil

35-180
Single system
32-180

1/2

6.37KW

6KW

30

35

3/8*2

660*300*580

48

LXT-9KW

9.75KW

9KW

30

35

3/8*4

524*632*290

55

LXT-12KW

12.75KW

12KW

45

60

3/8*4

820*340*700

95

LXT-18KW

19.5KW

18KW

45

95

3/8*4

900*500*960

87

LXT-24KW

25.9KW

12+12KW

28

8

3/8*4

900*500*960

85

Partners:(in no particular order)

Lesintor partner

Product Details

Brand pump

High-pressure resistance, high-temperature resistance, low noise pump, Stable and durable

mold temperature controller pump

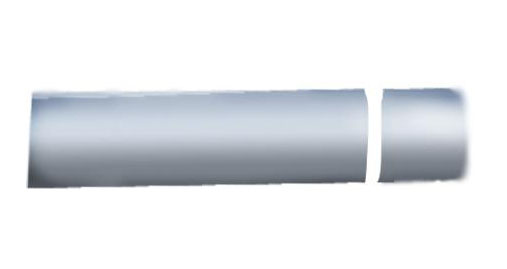

Stainless steel heating tube

The piping system and heating tube are made of SUN304 stainless steel, with strong corrosion resistance.

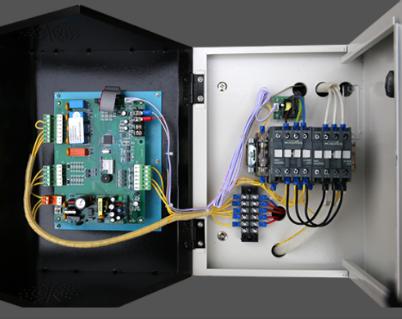

Electric control panel

An isolated electrical control box has a good heat insulation effect and prolongs the service life of electrical appliances. The wiring is neat and clear at a glance.

 mold temperature controller control panel
 mold temperature controller control panel

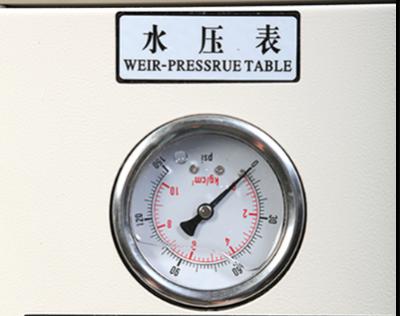

water pressure gauge

The data is accurate and clear at a glance.

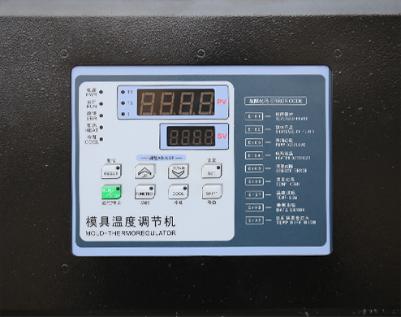

Microcomputer panel

High-precision automation controller, simpler operation interface, with sound and light alarm.

mold temperature controller panel
mold temperature controller panel

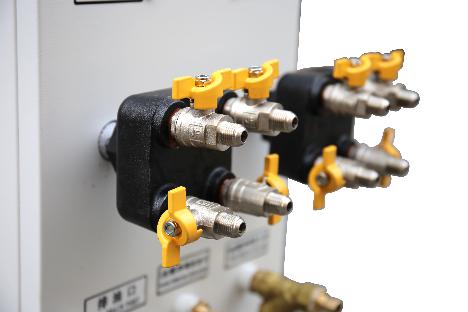

All copper entrances and exits

The mold is back, and the mold is out. The cooling water inlet and outlet are all made of copper joints, which are exquisite and durable. (6KW with two in and two out, 9KW with four in and four out)

Features:

1. It adopts the Yatai temperature control meter, which has stable performance, reliability, and perfect function.

2. The isolated electrical control box has a good heat insulation effect and prolongs the service life of electrical appliances.

3. Automatically drain when starting up, and the stainless steel pipes can heat evenly to reduce pipe resistance and rust.

4. The heating and cooling time is fast, and the temperature is stable.

5. The heating wire without a seam tube has an obvious energy-saving effect.

6. The safety protection and fault indication system are perfect, and no professional staff is needed for maintenance.

7. The water pump and heating power can be customized according to technical requirements. The electrical appliances adopt the French Schneider series products and are equipped with a cooling water pressure protection function.
